Quartz sand crushing and making line

Quartz sand is made from quartz rock, whose Mohs hardness 7, translucent or opaque crystals, generally white.Quartz according to the quality can be classified of ordinary quartz sand, fine quartz sand, high purity quartz sand and fused silica sand. Quartz stone production line is divided into ordinary quartz sand quartz sand and refined quartz sand. General quartz sand specifications: 0.5-1mm, 1-2mm, 2-4mm, 4-8mm, 8-16mm, 16-32mm, 10-20Mesh ,20-40Mesh ,40-80Mesh,100-120Mesh.

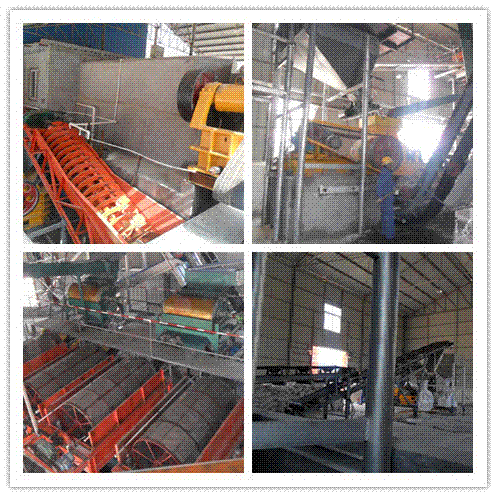

Quartz block raw material through vibrating feeder evenly sent to jaw crusher for coarse broken, coarse broken stones to a spiral sand washing machine to remove the soil and dust first, then transported to a fine jaw crusher for further crushing, crushed materials sent into double roller crusher for sand making. The crushed material from sand making machine will be the final products, the sizes accroding to customers' demand. Magnetic separator to get rid of the iron or steel inside, finally several trommel screens to get different finished products sizes. If you choose dry production process, you can be equipped with the fineness powder separator and dust removal equipment.

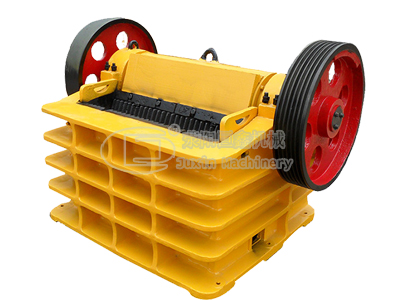

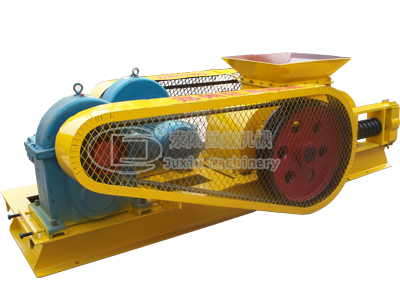

Jaw crusher, fine jaw crusher, double roller crusher, sand washing machine, magnetic separator, trommel screen.

Quartz sand is widely used in the following industries:

1. Quartz sand applied in manufacture of glass, making refractories, smelting ferrosilicon, metallurgical flux, abrasive materials and other fields;

2. Quartz products in construction industry used for extracting concrete acid and acid-resistant mortar;

3. Quartz sand plays an important role as the core raw material in silicon production;

4. Natural crystal raw material shortages and expensive. The featured purification purity quartz sand, ultra-fine quartz powder instead of crystal meets the increasing demand for high-tech.
