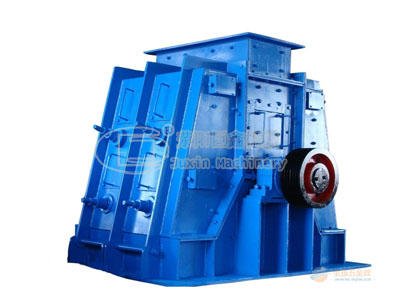

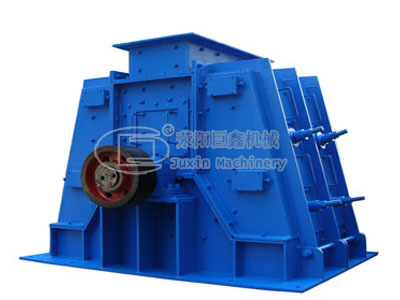

Reversible Hammer Crusher
- Type: PCK Reversible Hammer Crusher
- Max Feed Size: 80mm
- Capacity: 25-300t/h
- Processing material: limestone, coal, salt, white Asian, gypsum, alum, brick, tile, coal gangue etc
We're here to help:
Easy ways to get the answers you need.
(※ Click this button to inquiry)
.jpg)
.jpg)
■ Overview
Function
Reversible Hammer Crusher is one of the main equipment for crushing all kinds of medium hardness and brittle materials such as limestone, coal, salt, white Asian, gypsum, alum, brick, tile, coal gangue and etc. Because there is no grate. Reversible Hammer Crusher can do ppositive and negative rotation. This type of the crusher is according to the hardness, moisture, size of the material, and the required output size distribution.
Operation Principle
The main working part of Reversible Hammer Crusher is rotors with hammer. The rotors consist of main shaft, disk, pin shaft and hammers. The motor drives the rotors to rotate quickly in the crushing cavity. Raw materials enter the crusher through the feed opening and are stricken, impacted, cut and ground by the high-speed hammer to small size.
Features
1.High and constant capacity.
2.Low space requirement.
3.High machine availability.
4.Long lifetime.
5.Easy replacement of wear and spare parts.
6.Broad range of applications.
■ CASE
-

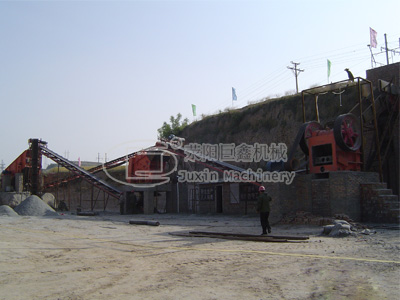

150-180t/h Stone making Production Line
According the requirement of customer, Yunnan 150-180t/h Stone making Production Line has some differences with normal Stone making Production Line. Due to the Capacity, We choose the models of all equipment for customers carefully..jpg)
-

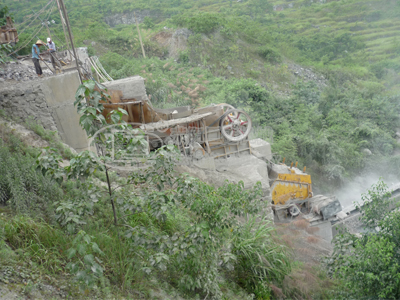

60-100t/h Dolomite Stone making Production Line
60-100t/h Dolomite Stone making Production Line mainly consists of ZSW3895 Vibrating Feeder, PE600*900 Jaw Crusher, PF1214 Impact Crusher, 2YK1548 Vibrating Screen; Some Belt Conveyors. And every machine and every model is provided by Juxin Machinery based on the detailed requiement of customer..jpg)
-

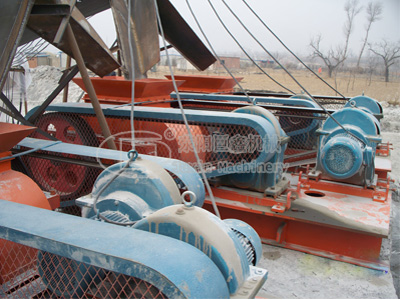

40-70t/h Quartz Sand Making Production Line
According the detailed requirement of Shanxi customers, we provide the 40-70t/h Quartz Sand Making Production Line, and it mainly consists of PE400*600 Jaw Crusher, PC1010 Hammer Crusher, 3 sets of 2PG610*400 Double Roll Crusher, 3YK1860 Vibrating Screen; Some Belt Conveyors etc..jpg)
