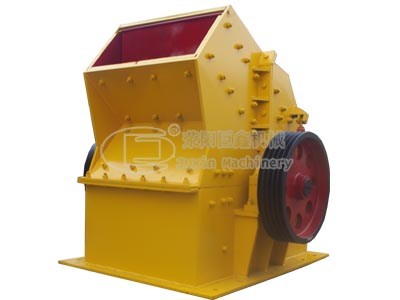

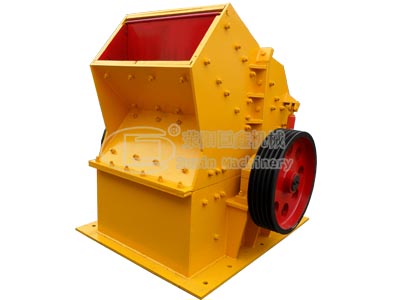

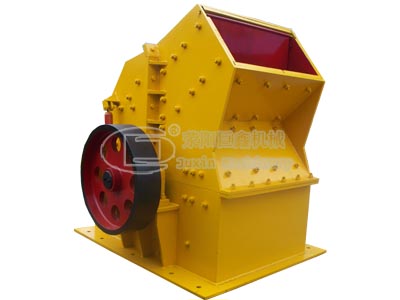

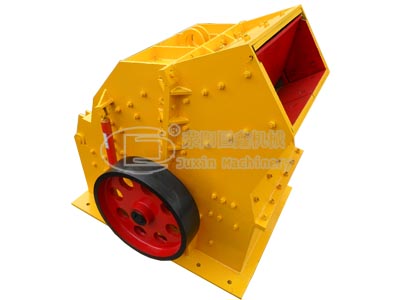

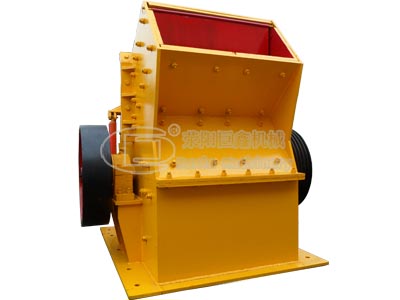

Hammer Crusher

Hammer Crusher is also called Hammer Breaker, hammer mill. The series of Hammer Crushers are regarded as the preferred equipments in small sand production line because they have the featuers of less investment, high efficiency. Discharge sizes are adjustable. They are suitable for crushing all the materials of brittle, medium hard, and compressive strength not over 150 Mpa, it is well known as limestone crusher.

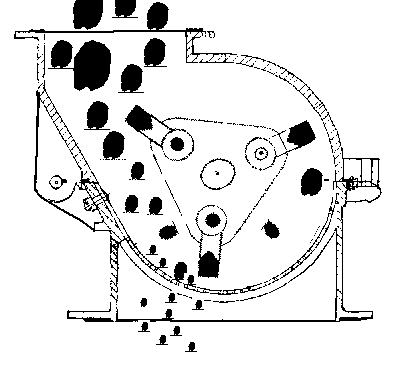

The motor drives the rotor of the hammer crusher rotate at a high speed through the belt. The materials are sent into the entrance of the crusher. They are crushed by the high speed hammer from blowing,impacting, cutting, grinding. Below the rotor,there are sieves, the little size products among the crushing products can be discharged through the sieve. The large size products are brought back to the crushed area by the hammer from blowing and grinding until they reached the required size. At last, they are discharged through sieve of PC hammer crusher.



1 Hammer headwork adopt of new technology casting ,with wear and impact resistance.

2 Adjusting grain size to cater for customers'need.

3 Seal body structure solved the problems of crushing plant dust pollution and gray body leakage.

4 The overall design has attractive appearance, compact structure, less easy damaged parts, easy maintenance.
