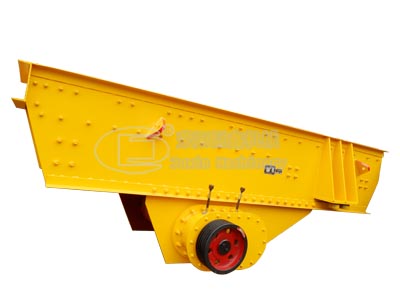

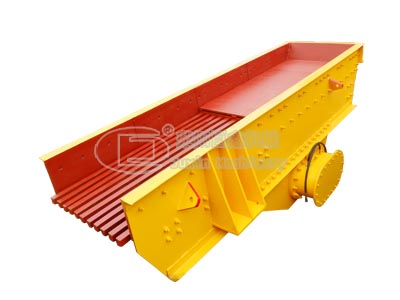

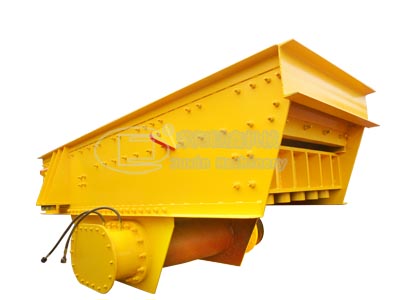

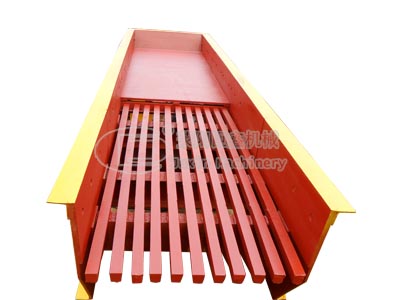

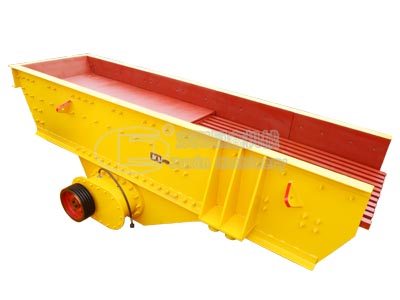

Vibrating Feeder

Vibrating Feeder is linear vibratory feeding equipment. It has the features of steady vibration,reliable operation and long life. It can provide continuous and uniform feeding for the crushing machine and has a coarse screening to the materials. The vibrating feeder is widely used in broken joint equipment of ore dressing, building materials, chemical industry etc.



The vibrating feeder is consist of feeding trough,exciter, spring bearing, transmission device etc. The vibration source of feeding tank vibration is exciter. The exciter is made up of two eccentric shafts and gears. The motor drives the main shaft through the triangle belt, then the top gear of the main shaft drive another shaft to rotate. The two shafts do reverse rotation at the same time and tank vibration to make the materials moving continuously. Thus they can achieve the goal of transporting materials.



1 Steady vibration,reliable operation,long life.

2 Easy to adjust the excitation force,can change and control the flow at any time.

3 The vibrating motor is the excitation source,low noise,low power consumption,good adjustment performance.No impacting materials phenomenon.

4 Simple structure,reliable operation,easy installation.

5 Light weight,small volume,easy maintenance.

6 Preventing dust pollution when adopt closed structure machine body.
