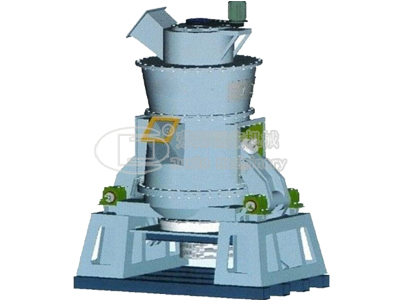

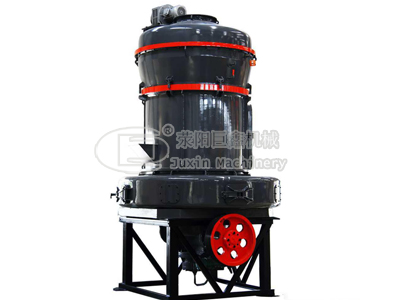

Vertical Roller Mill

vertical roller mill is one advanced mill, adopting top technology domesic and abroad, and based on many years’ mill experiences. It can crush, dry, grind, and classify the materials.

vertical roller mill machine can be widely used in such industries as cement, power, metallurgy, chemical industry, non-metallic mineral. It is used to grind granular and powdered materials into powder with required fineness.

Featurers

1 Low Investment Cost

This mill itself can crush, dry, grinding, classifying, so the system is simple, and occupation area is about 50% of ball mill system. In addition, it can be installed outside, so it will reduce a large number of investment costs.

2 Low Operation Cost

High efficiency: roller compacted materials directly onto the grinding disc, so power consumption is low. Compared with ball mill, it saves energy consumption by 30% ~ 40%.

Less wear and tear: As the roller is not in direct contact with the disc, and material of the roller and liner is high quality, so life lime is long.

3 High Drying Ability

As the hot air inside contacts directly with the material, drying ability is higher, and it saves energy. By regulating the air temperature, it can meet requirements with diffirent humidity.

4 Simple and reliable operation

It is equipped with automatic control systems, so remote control makes it easy to operate.

It is equipmented with one device,which prevents the roller from contacting with the liner directly, and avoids the destructive impact and severe vibration.

5 the stability of product quality

As the material stays in the mill for a short time, it is easy to detect and control the product particle size and chemical composition, to reduce duplication of milling, stable product quality.

6 Maintenance convenience

By reparinging fuel tank, rotating the arm, it is fast to replace the roller sleeve, and liner, and reduce the downtime loss.

7 Environmental protection

It  is with small vibration, low noise, and the overall sealing. The system works under negative pressure, so there is no dust going out. It meets the requirements of the state environmental protection.

Operating Principle

vertical roller mill is mainly consist of roller, shovel blade, shaft, etc. Under the impact of the centrifugal force, roller and ring are pushed together. The shovel blade convey raw material into the space between the roller and ring. fine powder is blowed up by air blower. Qualified product will go through powder concentrator, and oversize material will fall down and be ground again.
