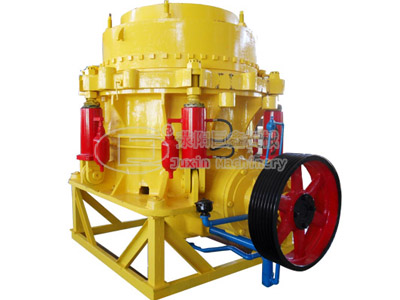

Cone Crusher
- Type: PYB/PYD/PYZ Cone Crusher
- Max Feed Size: 300/100/230mm
- Capacity: 5-80/5.5-81.4/10.2-80t/h
- Processing material: iron ores, copper ores, limestone, quartz, granite, grits tone etc
We're here to help:
Easy ways to get the answers you need.
(※ Click this button to inquiry).jpg)
.jpg)
■ Overview
Function
Cone crusher consist of frame, transmission device, hollow eccentric shaft, bowl-shaped bearing, crushing cone, springs and hydraulic pressure station for adjusting discharge opening. Cone crusher is widely applied in metallurgical, construction, road building, chemical and phosphates industry. Cone crusher is suitable for hard and mid-hard rocks and ores, such as iron ores, copper ores, limestone, quartz, granite, grits tone, etc. Juxin is a reliable cone crusher manufacturer and supplier.

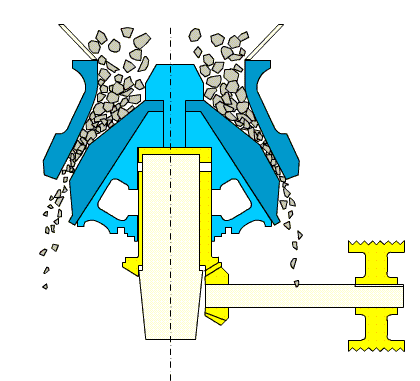

Working principle
During operation of cone crusher, the motor drives the eccentric shaft shells to turn around through horizontal axle and a pair of bevel gear. The axle of crushing cone swings with the force of eccentric shaft shell so that the surface of the crushing wall is close to the roll mortar wall from time to time. In this way, the ores and rocks will be pressed and crooked and crushed.
Features
1. Fine or medium type crushing.
2. Short head design.
3. Super short head for fine crushing.
4. Continuous Lubrication.
■ CASE
-
150-180t/h Stone making Production Line
According the requirement of customer, Yunnan 150-180t/h Stone making Production Line has some differences with normal Stone making Production Line. Due to the Capacity, We choose the models of all equipment for customers carefully..jpg)
-
60-100t/h Dolomite Stone making Production Line
60-100t/h Dolomite Stone making Production Line mainly consists of ZSW3895 Vibrating Feeder, PE600*900 Jaw Crusher, PF1214 Impact Crusher, 2YK1548 Vibrating Screen; Some Belt Conveyors. And every machine and every model is provided by Juxin Machinery based on the detailed requiement of customer..jpg)
-
40-70t/h Quartz Sand Making Production Line
According the detailed requirement of Shanxi customers, we provide the 40-70t/h Quartz Sand Making Production Line, and it mainly consists of PE400*600 Jaw Crusher, PC1010 Hammer Crusher, 3 sets of 2PG610*400 Double Roll Crusher, 3YK1860 Vibrating Screen; Some Belt Conveyors etc..jpg)
