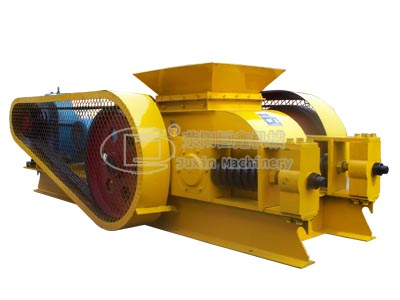

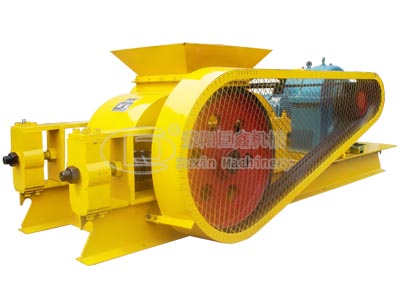

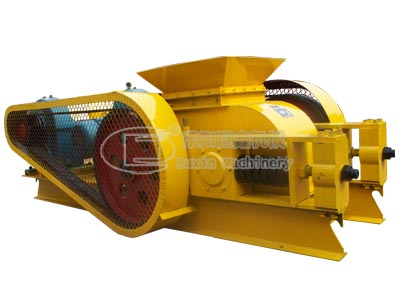

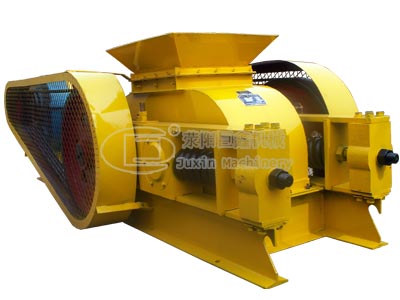

Double Roller Crusher

  • Type: 2PG Double Roller Crusher
  • Max Feed Size: 100mm
  • Capacity: 2-50t/h
  • Processing material: all kinds of medium hard ore and rock

We're here to help:

Easy ways to get the answers you need.

(※ Click this button to inquiry)
Share with :
jaw crusher
  • 2PG Double roller crusher
  • High capacity Double roller crusher
  • low price Double roller crusher
  • high efficiency Double roller crusher
  • High quality Double roller crusher
■ Overview
Double Roll Crusher is also called Double Roll Sand Maker. It is used for medium and fine crushing of all kinds of medium hard ore and rock in mineral separation, chemical industry, cement, building materials industrial department. The crusher consist of engine body, roller, safety spring etc. Transmission is driven by motor across belt that the rollers are rotate in two directions. Rollers space can adjust within the prescribed limit to control the discharge size. 2PG400*250,2PG610*400,2PG750*500 Double roller crusher are used as sand maker in sand making industry and for super fine crushing in particular industry. 2PG900X900 is used for medium crushing.

Operating principle
The operating principle of Double roller crusher is the same. There are wedge or gasket installed between the two rollers and adjustable bolt installed on the top of the wedge device. When the adjustable bolt pulled up the wedge,the wedge will make the moved roller getting off the fixed roller. The gap between two rollers become bigger, so does the discharge size. On the contrary, the gap become smaller, so does the discharge size.Gasket device can adjust the discharge size through increasing and decreasing the gasket numbers or thick and thin. When increasing the gasket, the gap between two rollers become bigger,Conversely, the gap and discharge size become smaller.

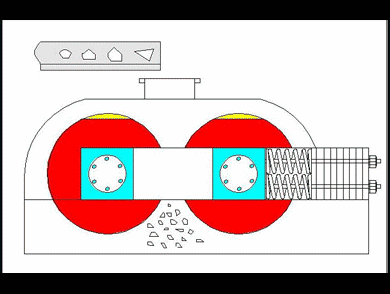

double roller crusher working principle

40-70t/h Quartz Sand Making Production Line

According the detailed requirement of Shanxi customers, we provide the 40-70t/h Quartz Sand Making Production Line, and it mainly consists of PE400*600 Jaw Crusher, PC1010 Hammer Crusher, 3 sets of 2PG610*400 Double Roll Crusher, 3YK1860 Vibrating Screen; Some Belt Conveyors etc.

40-70t/h Quartz Sand Making Production Line

400t/h Limestone Stone making Line

400t/h Limestone Stone making Line has the same kinds of machine with normal stone making line. According to the requirement of Capacity, we provide two sets of impact crusher as the second crushing machine.

400t/h Limestone Stone making Line
