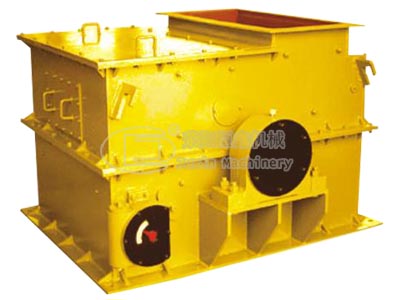

Ring Hammer Crusher

Ring Hammer Crusher is also called Hammer Breaker. They have the features of simple structure, high crushing ratio, efficient production. They can crush in two types:dry crush and wet crush. They are used for crushing all kinds of medium-hard and weak corrosive material. Ring hammer crusher are best for crushing all kinds of brittle materials. The compressive strength of the material is not more than 100Mpa and the surface water is not more than 15% Such as coal,gangue,coke,slag,red sandstone,shale,loose limestone and so on.



When the materials get into the Ring hammer crusher ,first they are crushed by the Hammer Shock with the rotor high-speed operation, the broken material gain the energy from the outer of ring hammer at the same time and at a high speed crush to the broken board to be re-crushed. Then they fall into the sieve and they will get further crush by shearing, extrusion, milling and the interaction between materials of the ring hammer. Then they are discharged through sieve. The debris can not be broken will get into the metal collector to get a regular clear.
